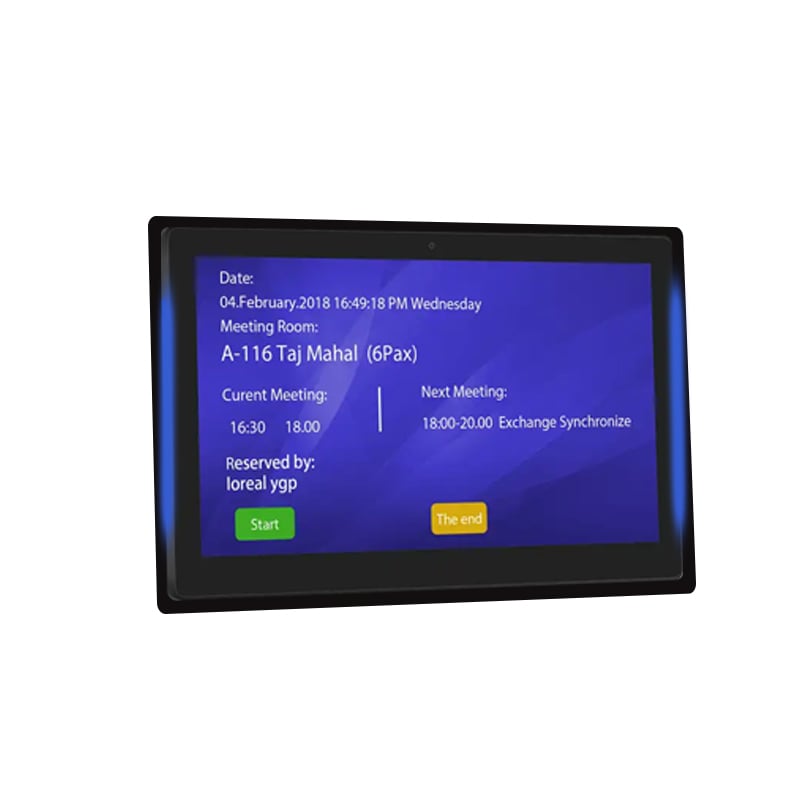

13.3Inch RK3566 POE NFC Wall Mounted Android Tablet PC With Two Sides Light Bar

13.3Inch RK3566 POE NFC Wall Mounted Android Tablet PC With Two Sides Light Bar

This meeting appoints the tablet with a large 13.3 -inch screen with a high -definition resolution of 1080P, which can provide a clear display effect. Using RK3566 high -performance processor with Android 11 system, the user's use equipment is smoother. Support POE and simplify the installation process. At the same time, the NFC function is supported, and users can sign in card swiping. The design of the bilateral band light bar is more beautiful, which is convenient for users to view the usage usage. Bring a front camera and microphone to support users to conduct video conferences.

Video
Features
Parameter
Products Description
Packaging
Recommended Products

Video

Features

Tablet Key Features

Panel: 13.3"LCD IPS panel
CPU:RK3566
RAM:2GB
Memory:16GB
Resolution:1920x1080
System:Android 11
Support NFC POE

Parameter

System
CPU	RK3566 Quad core cortex A55
RAM	2GB
Internal memory	16GB
Operation system	Android 11
Touch screen	10-Point capacitive touch
Display
Panel	13.3"LCD panel
Resolution	1920*1080
Display mode	Normally black
Viewing angle	85/85/85/85(L/R/U/D)
Contrast ratio	800
Luminance	250cd/m2
Aspect Ratio	16:9
Network
WiFi	802.11b/g/n
Ethernet	100M/1000M ethernet
Buletooth	Bluetooth 4.2
Interface
Card slot	SD card
USB	USB 3.0 host
Micro USB	Micro USB OTG
USB	USB for serial (TTL format)
RJ45	Ethernet interface ( POE function standard IEEE802.3at,POE+,class 4， 25.5W )
Power jack	DC power input
Earphone	3.5mm earphone + Microphone
Media play
Video format	MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K
Audio format	MP3/WMA/AAC etc.
Photo	jpeg
Other
VESA	75x75mm
Micphone	yes
Speaker	2*2W
LED Light bar	LED light bar RGB
NFC	Optional ,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
Camera	2.0M/P,front camera
Working temp	0--40degree
Language	Multi-language
Accessories
Adapter	Adapter,12V/1.5A
User manual	yes

Products Description

13.3 Inch screen

Using a 13.3 -inch screen can provide sufficient display areas while facilitate user

carrying. Compared with the 10.1 -inch screen, the 13.3 -inch screen can provide a

larger display area and display more content. The user's viewing is better. While

ensuring the quality of viewing, the weight is light, which is convenient for users to

carry equipment


BOE A+ Original screen

Using the BOE A+original screen screen can provide the top display quality, and the display effect is better. This screen has a longer life and can support the device for a long time. Provide high -definition resolution of 1920x1080, which can provide clear and delicate display effects, suitable for the information and timetable of conference rooms and office exhibitions.


Multi touch panle

Support 10 -point capacitor touch, the response is faster, the touch is more sensitive, the customer's experience is better. Customers can query the meeting time arrangement by touching the screen to increase the customer's experience.


Built in camera

Bring a front camera and microphone to support video conference functions. Users can perform face recognition and sign -in through the camera, or conduct remote meetings, and the usage scenarios are wider.


RK3566 CPU

Equipped with RK3566 processor, strong performance, and Android 11 operating system, can run the application smoothly. Support multi -task processing, meet the needs of conference management and multimedia display.

英文版_06.jpg 英文版_07.jpg

POE Power

Support POE power supply technology, insert network cables can provide power and network at the same time, simplifying the installation process. The equipment wall -mounted is more neat and beautiful when it is installed on the wall, and it is more convenient to install.

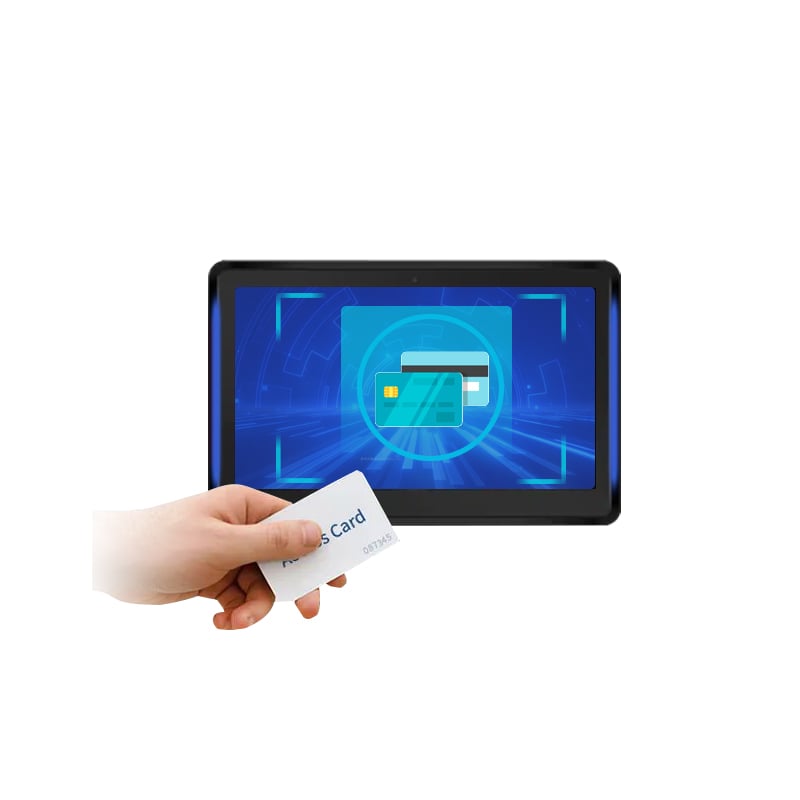

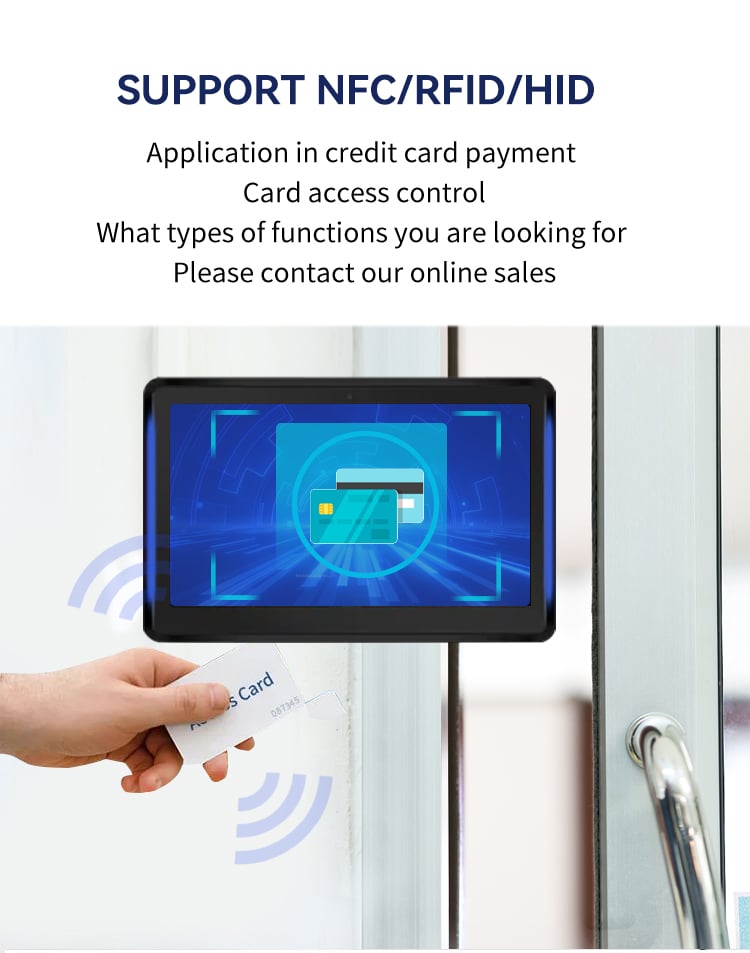

Support NFC/RFID/HID

Support NFC, users can perform authentication. Sign in through the NFC to improve the efficiency of meeting management.

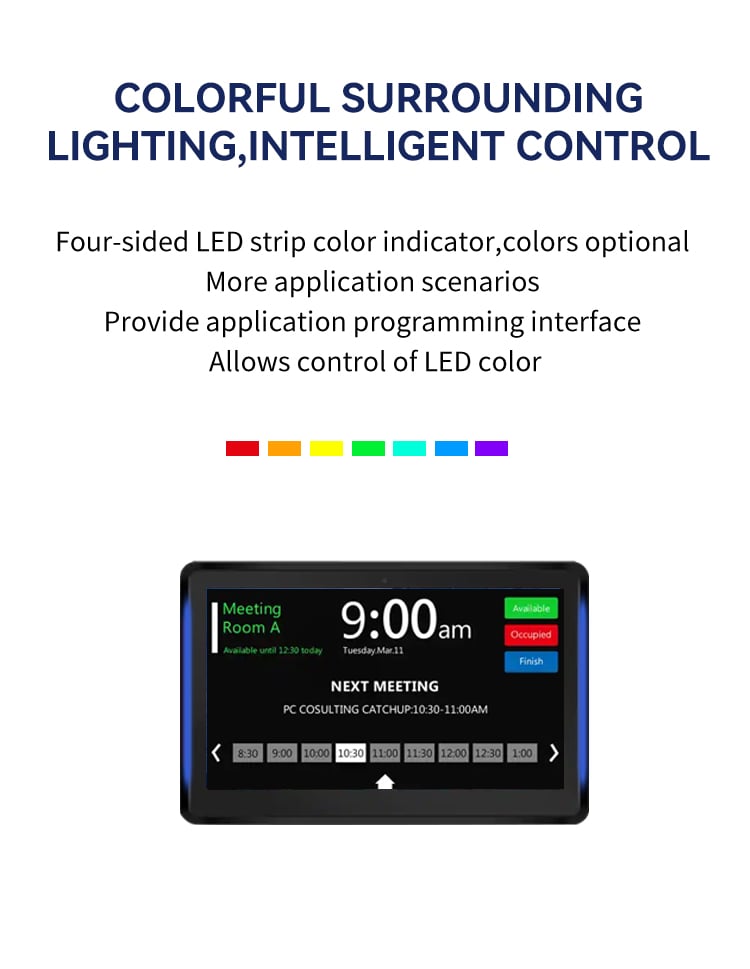

Led Light

Design of LED light bar. Users can directly judge the use of the meeting through different colors of light, which is convenient for users to view long -distance, and improve the visibility and convenience of conference management.

meeting tablet.jpg

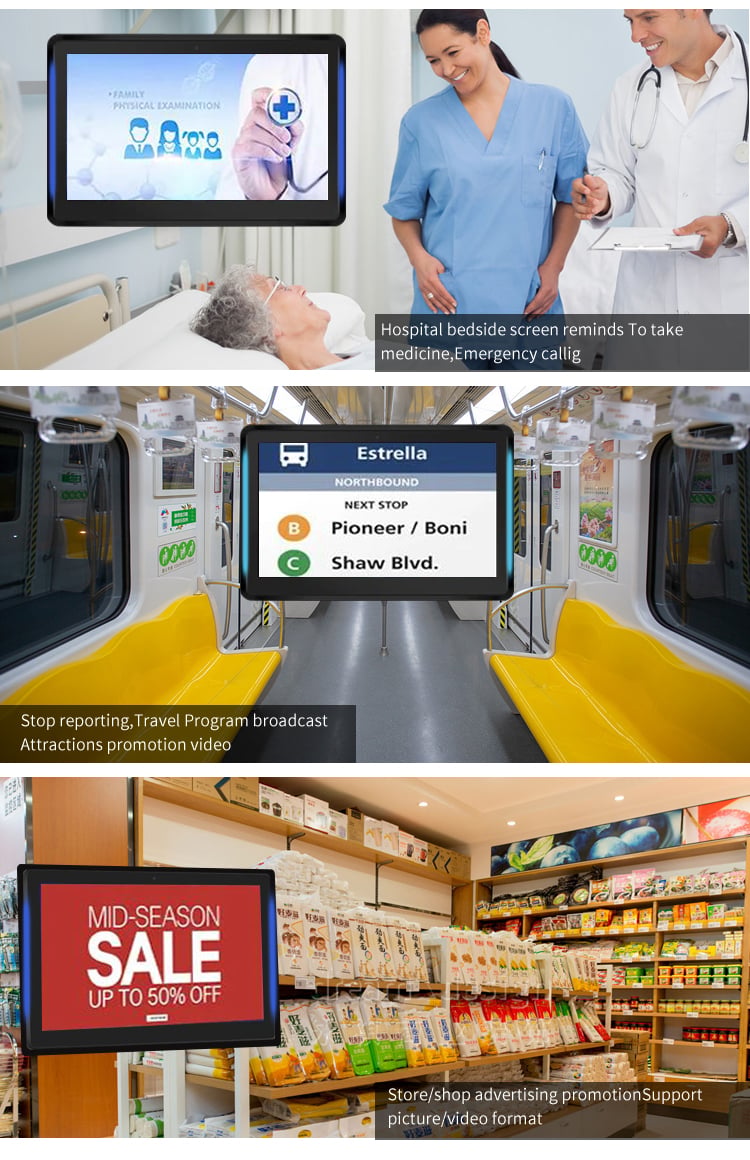

英文版_10.jpg 英文版_11.jpg

Packaging

Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
