13.3Inch Conference Room Display Wall Mounted POE NFC Android Tablets
This is a conference with NFC and POE functions to make an appointment tablet. It is equipped with RK3566 processor and Android 11 operating system to run smoothly. The 13.3 -inch screen, with a high -definition resolution of 1080P, can provide clear pictures and text display. 10 points of the capacitor touch, the operation is sensitive, the response is fast, and the customer's operating experience is better.The design of light strips around is more beautiful and can intuitively judge the use of the equipment. Built -in NFC and POE functions, more powerful functions.
- Video
- Features
- Parameter
- Products Description
- Packaging
- Recommended Products
Video
Features
- Panel: 13.3"LCD panel
- CPU:RK3566
- RAM:2/4GB
- Memory:16/32GB
- Resolution:1920x1080
- System:Android 11
- Support NFC/POE
Tablet Key Features
Parameter
| System | |
| CPU | RK3566,Quad-core cortex A55 |
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android 8.1 /10 |
| Touch screen | 10-Point capacitive touch |
| Display | |
| Panel | 13.3"LCD panel |
| Resolution | 1920*1080 |
| Display mode | Normally black |
| Viewing angle | 85/85/85/85(L/R/U/D) |
| Contrast ratio | 800 |
| Luminance | 250cd/m2 |
| Aspect Ratio | 16:9 |
| Network | |
| WiFi | 802.11b/g/n |
| Ethernet | 100M/1000M ethernet |
| Buletooth | Bluetooth 4.2 |

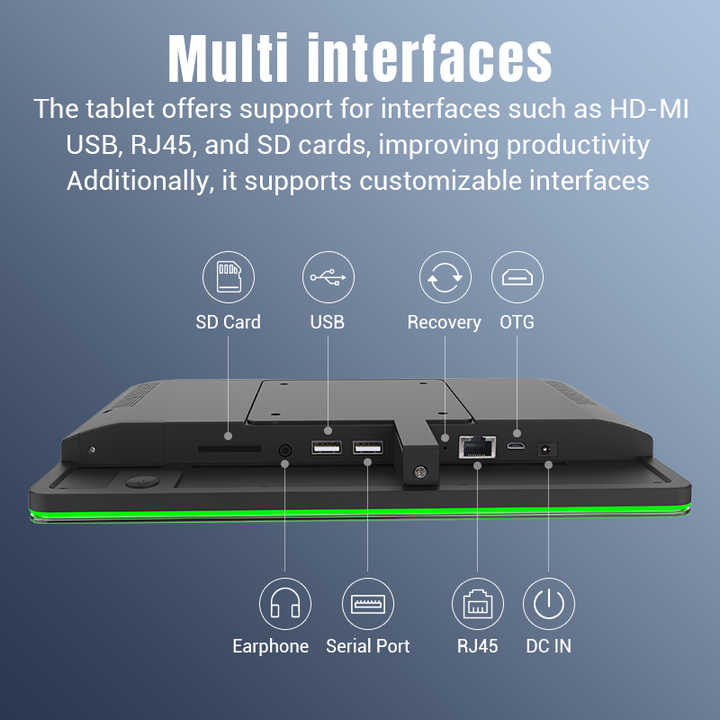

| Interface | |
| Card slot | SD card ,Max support to 64GB |
| SIM Slot | 4G Flow card |
| USB | USB host |
| Micro USB | Micro USB OTG |
| USB | USB for serial(TTL Level), Optional for USB Host |
| RJ45 | Ethernet interface ( POE function standard IEEE802.3at,POE+,class 4， 25.5W ) |
| Power jack | DC power input |
| Earphone | 3.5mm earphone with microphone |
| Media play | |
| Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. |
| Photo | jpeg |
| Other | |
| 4G Module | Optional |
| VESA | 75*75mm |
| Speaker | 2*3W |
| Microphone | Single microphone |
| LED light bar | LED light bar with RGB and mixed color |
| RFID | Optional , 125k,ISO/IEC 11784/11785,Support to EM4100，TK4100/GK4100，EM4305，T5577 |
| NFC | Optional ,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
| Camera | Routine angle 5.0MP |
| Working temp | 0--40degree |
| Certificates | CE/FCC |
| Language | Multi-language |
| Accessories | |
| Adapter | Adapter,12V/2A |
| User manual | yes |
Products Description
13.3Inch screen
Using a 13.3 -inch screen, it can provide a sufficient display area, the display content is clearer, and the user viewing effect is better. Suitable for the conference room to display time arrangement information and conference schedule content.
1080P Resolution
The use of 1920x1080 resolution can provide high -definition text and image display, high definition, can provide more details, reduce vagueness, improve reading comfort, and bring good visual experience to users.
RK3566 CPU
The RK3566 processor with a quad-core Cortex-A55 architecture has higher energy efficiency and performance compared to RK3288 and can handle more complicated applications. The RK3566 effectively extends the battery life of the equipment, and the equipment can run for a long time.
POE Function
Support the POE function, can transmit data and power supply at the same time through a network cable, simplify the installation process, and reduce the user's dependence on the power socket. It is convenient for users to install on wall -mounted, and the installation is more neat.
Capacitive touch
Use 10 points of capacitor to touch, and can recognize 10 finger touch operations at the same time. Users can use complex gesture operations, such as scaling, rotation, sliding, etc. Capacitor touch response is fast, high accuracy, and user touch experience is better. The capacitor touch screen is abrasion -resistant and anti -scratch is suitable for long -term high frequency use, which increases the service life of the equipment.
Four sides light bar
The unique four -sided lamp design ensures aesthetics while attracting users' attention. It is convenient for users to see the use of the equipment more intuitively and improve the efficiency of conference management.
Packaging
Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
