10.1Inch POE NFC IPS Panel Wall Mounted Android Tablet With Four Sides Light Bar
This is a conference room scheduled tablet with a 10.1 -inch screen with a resolution of 1280x800 to provide clear text and pattern display. With high -performance RK3566 processors and Android systems, it can run various tasks smoothly. Very suitable for the use of conference management and other scenarios. The lamp design on all sides is more beautiful and the equipment is more practical. The device has NFC and POE functions, which has more powerful functions and wider use scenarios.
- Video
- Features
- Parameter
- Products Description
- Packaging
- Recommended Products
Video
Features
- Panel: 10.1"LCD panel
- CPU:RK3566
- RAM:2GB
- Memory:16GB
- Resolution:1280x800
- System:Android 11
- Support NFC POE
Tablet Key Features
Parameter
| System | |
| CPU | RK3566，Quad-core A55 |
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android 11 |
| Touch screen | 10-Point capacitive touch |
| Display | |
| Panel | 10.1"LCD panel |
| Resolution | 1280*800 |
| Display mode | Normally black |
| Viewing angle | 85/85/85/85(L/R/U/D) |
| Contrast ratio | 800 |
| Luminance | 250cd/m2 |
| Aspect Ratio | 16:10 |
| Network | |
| WiFi | 802.11b/g/n |
| Ethernet | 100M/1000M ethernet |
| Buletooth | Bluetooth 4.0 |
| Interface | |
| Card slot | SD card |
| USB | USB 3.0 host |
| Micro USB | Micro USB OTG |
| USB | USB for serial(RS232 format) |
| RJ45 | Ethernet interface ( POE function optional IEEE802.3at,POE+,class 4， 25.5W ) |
| Power jack | DC power input |
| Earphone | 3.5mm earphone with microphone |
| Media play | |
| Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. |
| Photo | jpeg |
| Other | |
| VESA | 75x75mm |
| NFC | Optional ,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
| Camera | Front camera 2.0M/P /Binocular camera(optional) |
| Microphone | yes |
| Speaker | 2*2W |
| LED light bar | LED light bar with RGB and mixed color |
| Working temp | 0--40degree |
| Language | Multi-language |
| Accessories | |
| Adapter | Adapter,12V/1.5A |
| User manual | yes |
Products Description
10.1Inch screen
With the 10.1 -inch LCD screen, it can provide sufficient display area, light weight and convenient for users to carry, and suitable for conference rooms. The LCD screen has low power consumption, and it is more energy -saving and environmentally friendly for a long time. It is suitable for a long -term operation to schedule a tablet.

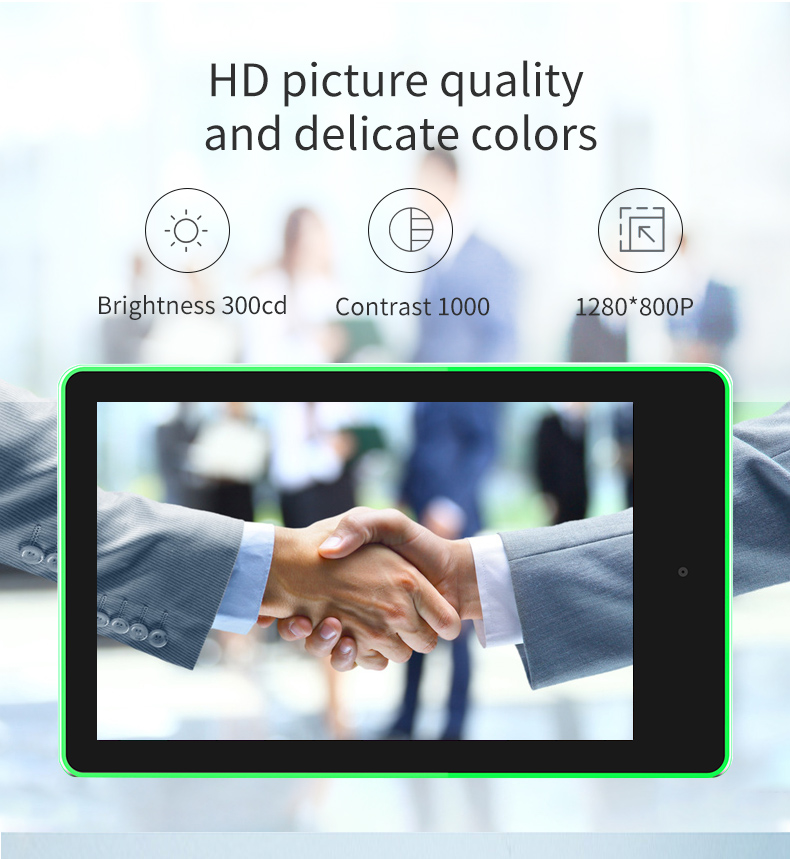

High resolution
The device uses the resolution of 1280x800, which can provide high -definition images, which is suitable for playing multimedia content. The brightness is 300cd/m2, and the device can also clearly see the screen content in a brighter environment. The contrast of 1000: 1 can provide a clearer sense of layering, and the user's viewing effect is better.
A+ Screen
Using the A+original screen screen can provide the top display quality, and the display effect is better. This screen has a longer life and can support the device for a long time. Provide high -definition resolution of 1920x1080, which can provide clear and delicate display effects, suitable for the information and timetable of conference rooms and office exhibitions.
Four sides led lights
The device is equipped with RGB LED strips, and users can set the color of the lights themselves. Users can judge the use of the conference room based on the color of the light, which increases the visibility and practicality of the equipment.
RK3566 CPU
This tablet uses RK3566CPU, a 4 -core A55 architecture processor, equipped with G52 graphics processor, supports the two screens, and has a strong video decoding ability and can efficiently concurrently process multi -diagram analysis, which can meet performance and function expansion well need. Compared with RK3128, it has ultra -low power consumption and has a longer battery life. The main frequency is up to 2GHz, and the performance has greatly improved.
Wall Mounted design
Adopting a 4 -hole wall -mounted design to save more space and improve space neatness. Compared to 2 holes, it is more stable and not easy to shake. The optimized one -type wall -mounted wall hanging frame, wall hanging is more convenient and efficient, can quickly align the wall hanging holes, and the effect is better.
NFC Function
Built -in NFC function, users can quickly verify their identity through NFC. Sign in through NFC, users use more efficiently.
POE Function
Standard the POE power supply module, support the power supply to the equipment, no longer connect the adapter, the installation of the wiring is more convenient, and the safety of the system can make the equipment run for a long time. Without the power line, installing is more flexible and convenient.
Packaging
Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
